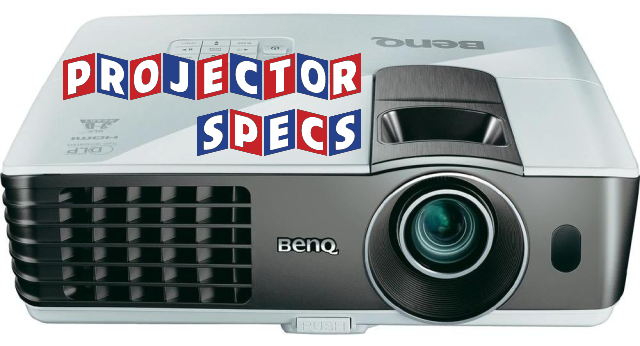

Model Owners Manual BenQ MX711 Wireless Network Projector
Brightness
  • STANDARD: 3200 ANSI lumens
  • ECO-MODE: ____ ANSI lumens
  • Contrast Ratio (Full off/on) 5300:1
    Resolution
    4:3 (Native), 5:4, 16:9, 16:10
  • Native: 1024 x 768 pixels
  • Lamp
  • Standard: 3,500 hours
  • Eco-Mode: 5,000 hours
  • 230w DC
  • Lens
  • Focus: Manual
  • Zoom: Manual, 1.30:1
  • Throw Distance 3.5 - 26.0 feet
    Image Size 32.0 - 300.0 inches
    Digital Keystone Vertical, 40
    Inputs
  • LAN Networking: RJ-45 x1 (LAN Display)
  • USB connector: Type A x1 (USB Reader)
  • 2 x 15-pin VGA (RGB Component Compatible)
  • USB Type mini B x1 (USB display)
  • 1 x 3.5mm audio, L/R
  • 1 x 3.5mm Mic
  • 1 x RS-232C Serial
  • 1 x HDMI v1.3
  • 1 x S-Video
  • Outputs
  • 1 x 15-pin VGA (RGB Component Compatible)
  • 1 x 3.5mm audio, L/R
  • 2 x RCA audio, L/R
  • Internal Speaker 10w Mono
    Audible Noise
  • Standard: 32.0 dB
  • Eco-Mode: 27.0 dB
  • Performance
  • Horizontal Frequency: 31-92 kHz
  • Vertical Scan Rate: 48-120 Hz
  • Size / Weight
  • 12.24 x 9.6 x 4.09 inches
  • 6.0 lbs
  • Power Consumption
  • Max: 306w
  • Standby: < 1w

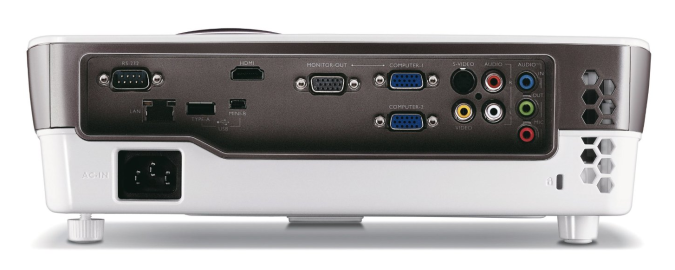

  • Back Panel:
